Recreating the Jungle LZ: A Complete 1:35 Scale Vietnam War Combat Diorama

The damp heat of the rainforest, the deafening thrum of helicopter blades, and the constant, thick tension of the unknown—the Vietnam War remains one of the most visually and historically compelling conflicts of the modern era. For military modelers, capturing this atmosphere requires more than just assembling plastic parts; it demands a deep commitment to storytelling, realism, and historical accuracy.

Today, I am incredibly proud to unveil the new, fully expanded edition of my Vietnam War Combat Diorama in 1:35 scale. This project is a complete battle scene that bridges the gap between the skies and the swampy ground below.

 The completed 1:35 scale diorama blending seamlessly into a sun-drenched, misty Vietnam jungle backdrop.

Crafting and Texturing the Terrain

Creating a convincing organic environment like the Vietnamese jungle requires building up realistic textures layer by layer. To create the topography for the Landing Zone and the adjacent swamp, I started with a sturdy base of extruded polystyrene foam.

Using a custom plaster and texture paste mixture, I sculpted the natural banks, slopes, and rough ground details directly over the carved foam. Once the texture cured, I applied a vibrant green acrylic base coat using a wide flat brush to prep the ground. This foundation layer ensures that no bare white spots show through once the static grass, soil flocking, and heavy jungle foliage are applied.

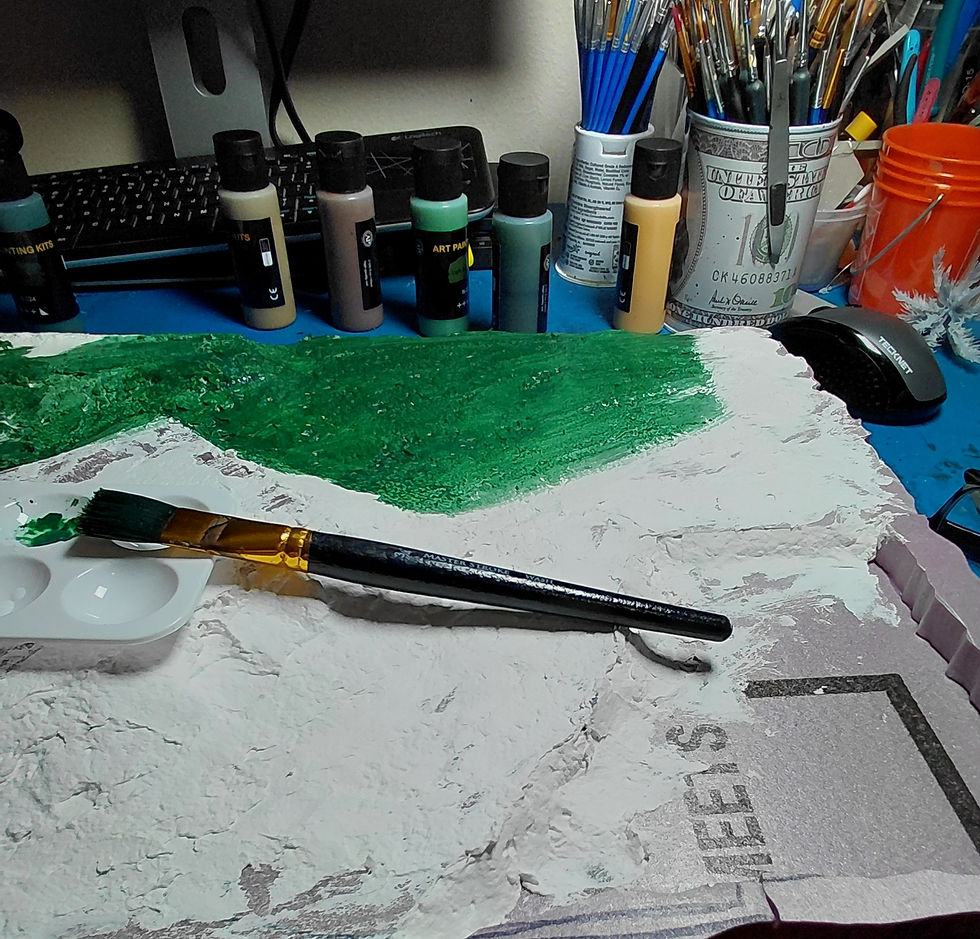

The texturing stage: applying plaster over the foam base and laying down the initial green acrylic undercoat.

Designing the jungle ecosystem: building up the scenery from low static grass up to mid-sized ferns and towering palm trees.

Behind-the-scenes work showing the masking of the Huey canopy and test-fitting the infantry squad inside the cargo bay.

Behind-the-scenes work showing the masking of the Huey canopy and test-fitting the infantry squad inside the cargo bay.

The Centerpiece: The Huey UH-1 and its 3D Printed Crew

Helicopters defined the tactics of the Vietnam War, and the Bell UH-1 "Huey" is the ultimate icon of that airmobile era. The helicopter in this diorama has been meticulously built and heavily weathered to reflect the brutal wear-and-tear of operating in high-humidity jungle environments—complete with exhaust soot, faded olive paint, and dusty rotor blades.

To push the boundaries of realism, I moved away from generic model figures and integrated custom, highly detailed 3D printed helicopter pilots inside the cockpit. These 1:35 scale pilots feature historically accurate gear specific to Vietnam-era aviators:

• Standard olive drab flight suits with realistic fabric folds.

• The iconic flight helmets with integrated communication headsets and microphones.

• Detailed survival vests and harness straps.

One pilot has his hands firmly on the collective and cyclic controls, while the co-pilot monitors the instrument cluster, capturing the high-stress alertness of a jungle landing zone operation.

A close-up view of the Huey's nose and open cabin doors, showcasing the dense surrounding jungle and the pilots in the cockpit.

The Ground Assault: Wading Through the Swamps

While the Huey commands the upper half of the display, the true grit of the Vietnam conflict is told on the ground. The centerpiece of the terrain is a deep, murky swamp that the U.S. infantry squad must navigate.

Using specialized high-gloss epoxy resins and realistic muddy tints, I recreated the look of stagnant, dirt-choked swamp water. In a dynamic display of action, two soldiers are depicted wading waist-deep through the dark water, holding their rifles high above their heads to protect their weapons and ammunition from the moisture.

From the heavy webbing on their gear to the weary, focused expressions on their faces, these infantrymen represent the grueling, exhausting reality faced by soldiers during search-and-destroy missions in the rainforest.

Infantry grunts wading waist-deep through the swamp, navigating the hazardous terrain near the landing zone.

Recreating the Jungle and Village Life

A historical diorama needs a convincing world to live in. To tie the ground troops and the helicopter together, I designed a multi-layered ecosystem that reflects the Vietnamese countryside:

1. Dense Tropical Vegetation: Multi-layered jungle plants, hand-painted ferns, elephant grass, and tall palm trees frame the landing zone, giving the scene natural height and depth.

2. The Rural Stilt House: Next to the swamp stands a weathered, scratch-built wooden stilt house with a detailed thatched roof, typical of rural Vietnamese villages. This structure adds a layer of cultural and environmental context to the military operation.

3. Visual Cohesion: I applied matching mud, clay, and grime effects to the soldiers’ boots, the stilt house pillars, and the helicopter's landing skids. This ensures every element looks like it is interacting with the exact same humid, muddy environment.

What’s Next for Jacks Dioramas?

This expanded Vietnam War edition is a major milestone for my workshop. By combining traditional scale modeling, advanced water effects, and custom 3D printing for the helicopter crew, the scene tells a complete, cinematic story of courage, tension, and historical accuracy.

If you are a collector or military history enthusiast and would like to add a unique, custom-built diorama to your collection, feel free to explore the store page or reach out directly at jacksdioramas.com to discuss a custom commission!
